Product Details:
Payment & Shipping Terms:
|
| Materials: | Aluminum | Led Chips: | Citizen COB |
|---|---|---|---|
| Voltage: | 86-264V | PF: | 0.9 |
| Power: | 10W | Lumen Output: | 900lm |
| CRI: | ≥83/90/97Ra | Beam Angle: | 90&Deg |
| Size: | D190mm*H86mm | Cut Out Size: | 165-170mm |
| Warrenty: | 5yrs | Work Temp.: | -20-40°C |
| Waterproof: | IP65 | Application: | Outdoor |
| Highlight: | IP65 Commercial LED Downlight,Commercial LED Downlight 10W,commercial electric led downlight 20w |
||

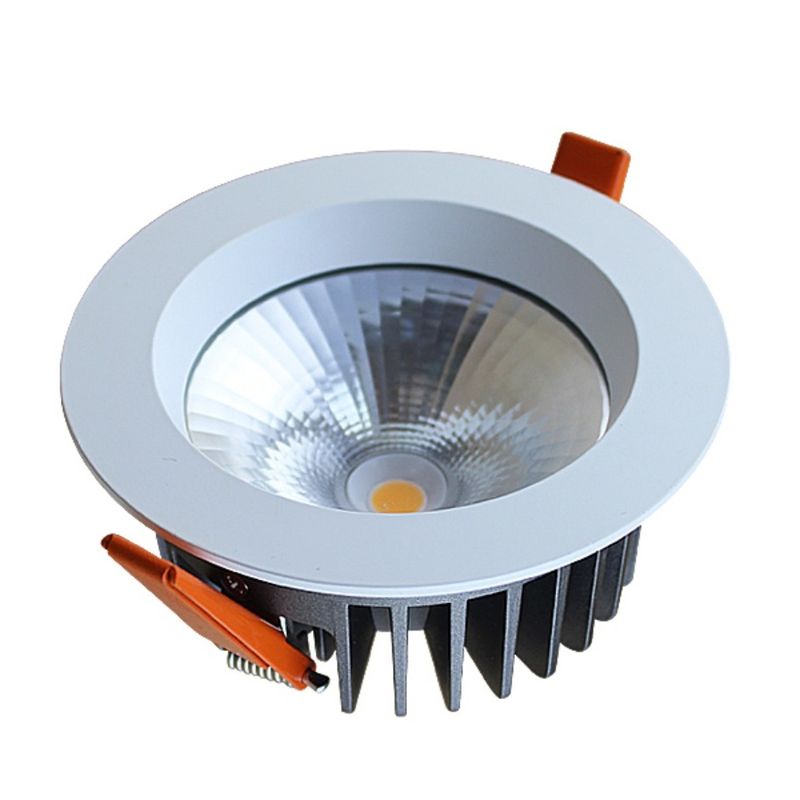

Commercial LED downlight IP65 outdoor waterproof Down light 3inch to 8inch 10W /20W/30W/40W
Available in a wide range of wattages and hole cut sizes to suit your installation needs, the LFL C55 series fixed commercial downlight series delivers energy efficient, dimmable downlights for every application. LFL-DL fixed series downlights are an affordable, energy efficient upgrade for existing halogen downlights. They are available in a variety of hole cut sizes and beam angles, and come in 3000K warm white and 6000K cool white colour temperatures. Each downlight in the series is dimmable and features a simple and stylish white gimble surround and partially frosted diffuser.
Product Feature:
| No. | Model No. | Size (mm) | Describle | Assembly | Hole size(mm) | Photographic | Waterproof | Power(W) | Beam Angle | CCT | CRi | SDMC | Light efficiency | Lumen output(Lm) | LED Chip |
| 1 | QR107 | ø110*59 | The exterior design of the lamp body is of modern style, with a strong sense of lines, clear water chestnut, and the overall style is matched with the architectural style. Excellent heat dissipation design to ensure lamp life, integrated radiator structure design, can make lamps and lanterns reach IP65 waterproof level | Recessed | ø90 | 反光杯 | 65 | 10W | 15/24/36 | 2700K 3000K 4000K 6000K |
80/90 | ≤5 | 90 | 900 | COB |
| 2 | QR107 | ø127*70 | Recessed | ø110 | 反光杯 | 65 | 20W | 15/24/36 | 2700K 3000K 4000K 6000K |
80/90 | ≤5 | 90 | 1800 | COB | |
| 3 | QR107 | ø164*81 | Recessed | ø145 | 反光杯 | 65 | 30w | 15/24/36 | 2700K 3000K 4000K 6000K |
80/90 | ≤5 | 90 | 2700 | COB | |
| 4 | QR107 | ø220*90 | Recessed | ø200 | 反光杯 | 65 | 40W | 15/24/36/60 | 2700K 3000K 4000K 6000K |
80/90 | ≤5 | 90 | 4500 | COB |
Features:
• Available in 10/20/30/40 W models.
• Average luminous efficacy of 110lm/W across the range.
• Dimmable, energy efficient replacement for halogens.
• Recessed, white gimble with partially frosted diffuser.
• Long life LEDs with 35,000 hours rated service life.
• Hole cut sizes ranging from Ø90mm ~ Ø200mm.
Recessed COB Down Light Application:
1. Indoor home lighting,
2. Meeting LED Lighting ,
3. Hotel COB Down lighting,
4. Gallery Down lighting,
5. Shopping mall lighting,
6. Commercial environment lighting,
7. Mesuem lighting,
Packing Information
| Packge size | package weight (Kg) | qty/Carton | Carton Size | Carton weight (Kg) |
| 21.5(L)x21.5(D)x9.5(H)cm | 1.21 | 12 | 58(L)x44(D)x24(H)cm | 15.56 |
